Exterior Expansion Joint Covers

DESIGNED TO WITHSTAND HARSH EXTERIOR CONDITIONS

In addition to meeting the challenges of seismic & thermal movement, exterior expansion joint covers must also be able to withstand harsh exterior conditions including extreme weather events, very high UV levels and substantial temperature fluctuations. As exterior EJCs can be difficult to monitor & maintain, it’s vital to choose a product that delivers high performance over the long-term, without the need for regular maintenance. ABS West supplies a range of CS expansion joint covers specifically designed to stand up to harsh exterior conditions, while reliably handling multi-directional, seismic movements. View the products below:
Products
Brochures

Exterior Expansion Joint Covers

DESIGNED TO WITHSTAND HARSH EXTERIOR CONDITIONS
In addition to meeting the challenges of seismic & thermal movement, exterior expansion joint covers must also be able to withstand harsh exterior conditions including extreme weather events, very high UV levels and substantial temperature fluctuations. As exterior EJCs can be difficult to monitor & maintain, it’s vital to choose a product that delivers high performance over the long-term, without the need for regular maintenance. ABS West supplies a range of CS expansion joint covers specifically designed to stand up to harsh exterior conditions, while reliably handling multi-directional, seismic movements. View the products below:
ProductsBrochures

ENQUIRE ABOUT THIS PRODUCT

  1. Home
  2. PRODUCTS
  3. EXPANSION JOINT COVERS
  4. Exterior Expansion Joint Covers
EXTERIOR EXPANSION JOINT COVERS

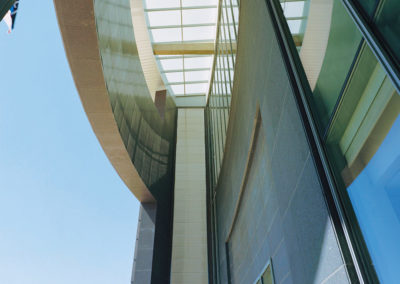

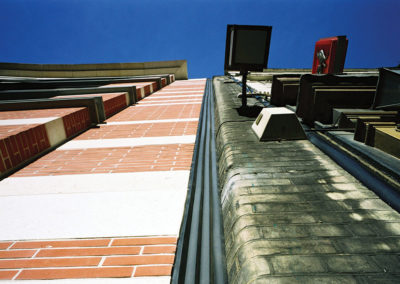

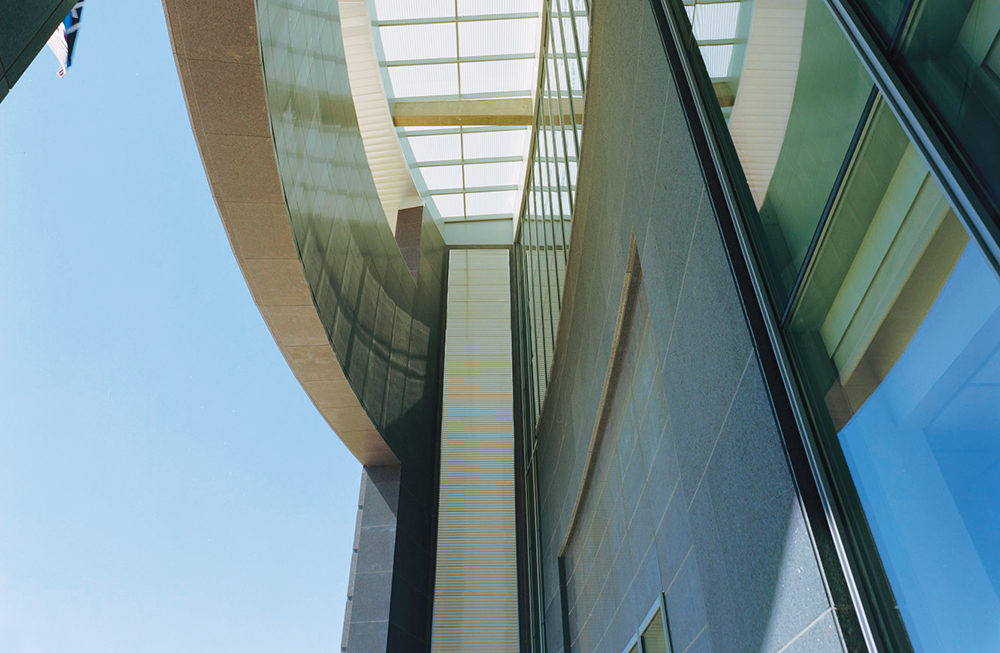

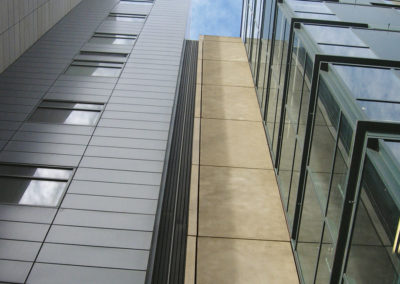

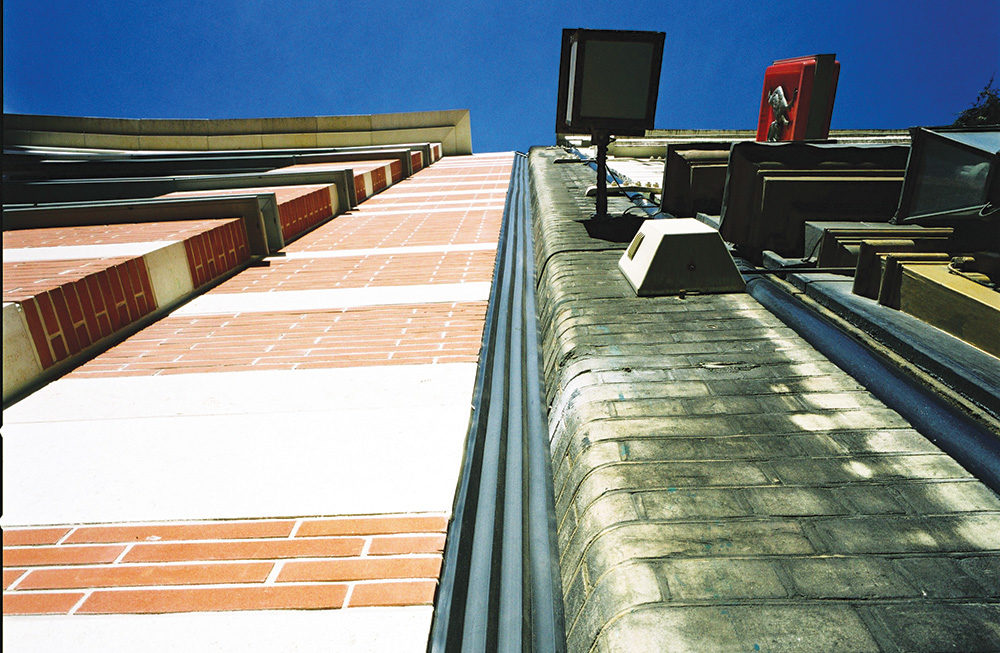

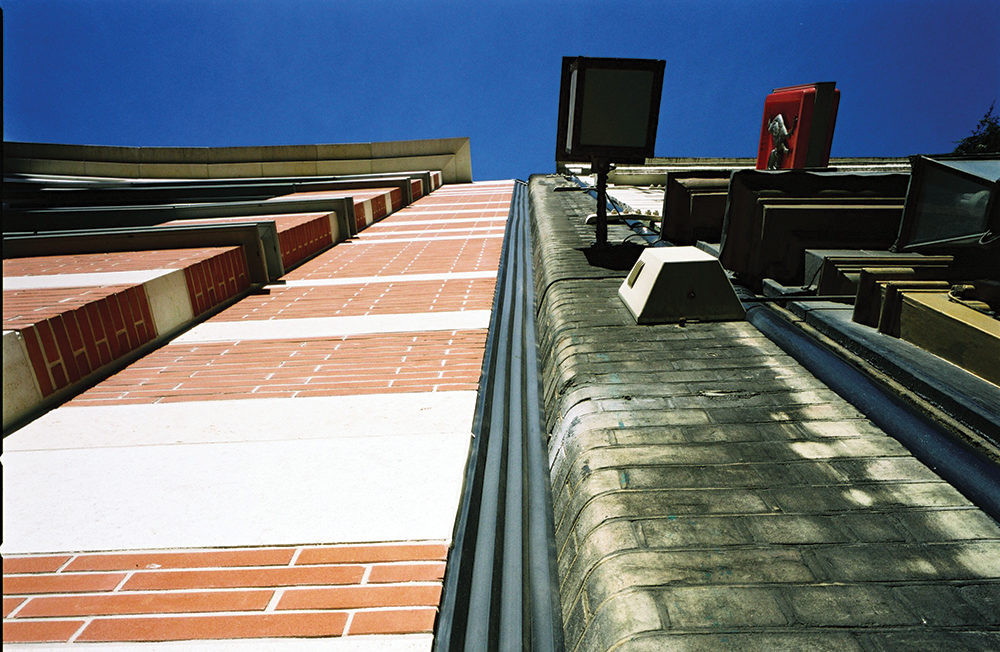

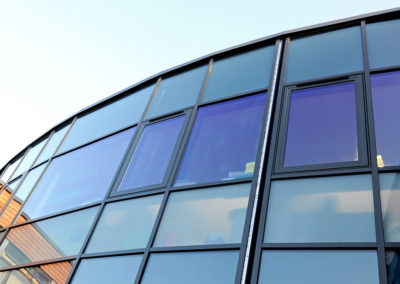

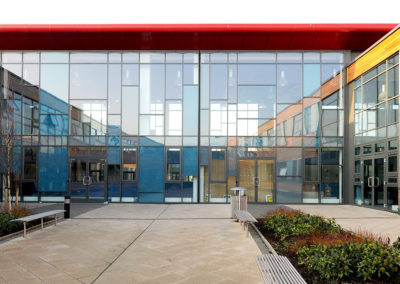

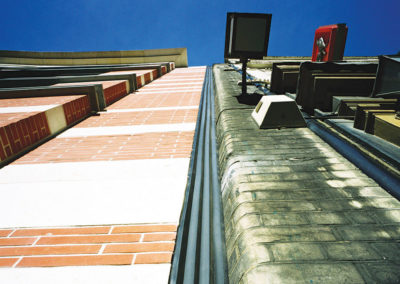

INSPIRATION GALLERY
Exterior Expansion Joint Covers

WATCH HOW EXTERIOR EJCs WORK
Demonstration of XLS Series:


TECHNICAL PRODUCT INFORMATION
Exterior Expansion Joint Covers

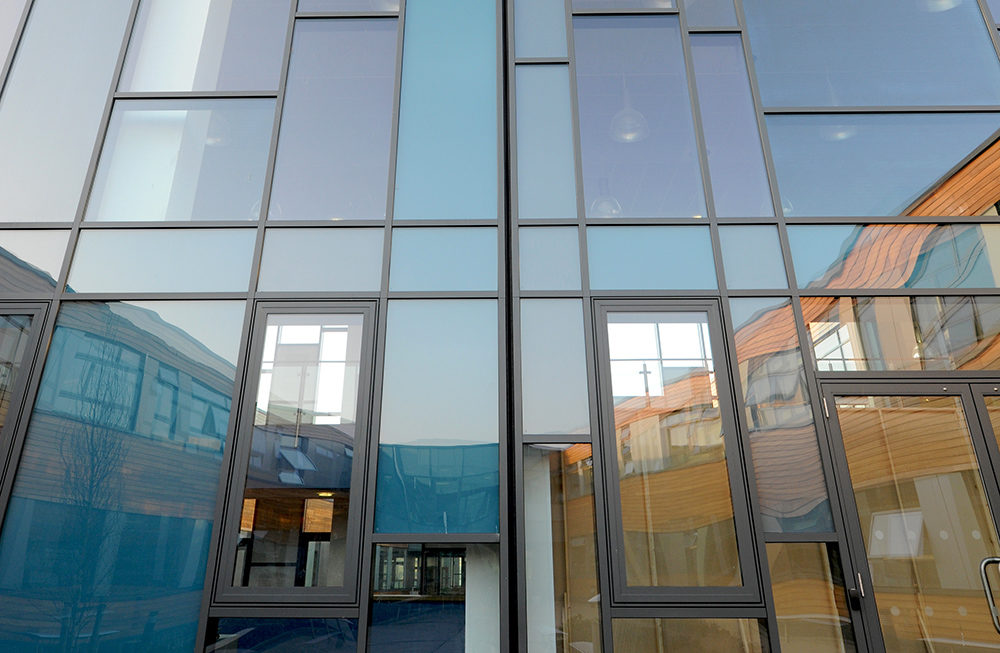

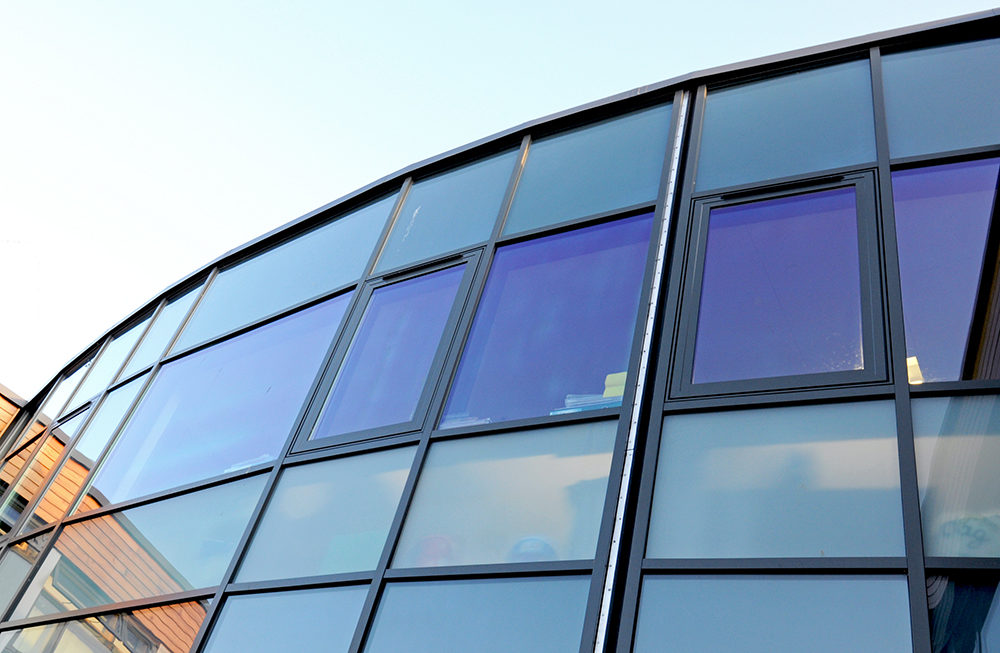

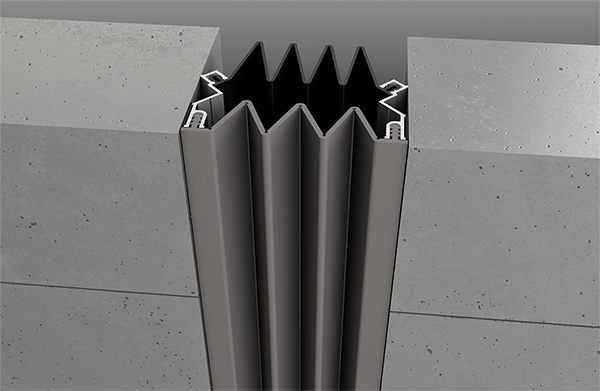

SC Series

Designed for applications where weather protection & water tightness are paramount.  Able to accommodate 100% movement, the SC joint cover consists of an aluminium frame, a concertina Santoprene primary gasket and a PVC secondary gasket. Heat welded, weather tight transitions are available if required.

  • Joint Width: up to 275mm
  • Horizontal: up to ±200mm
  • Vertical: up to ±20mm
  • Lateral: up to ±6mm

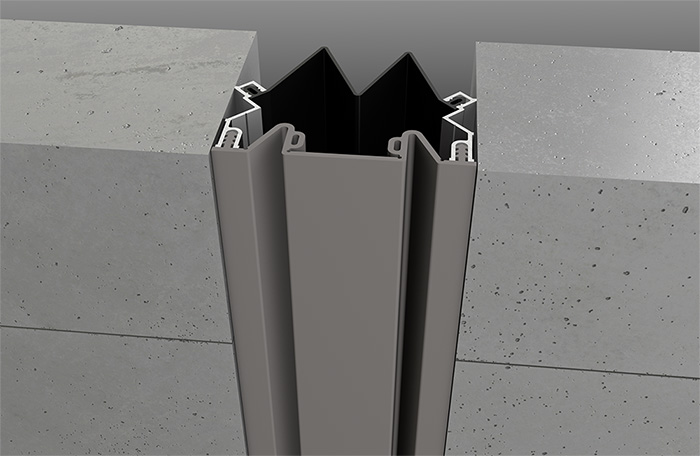

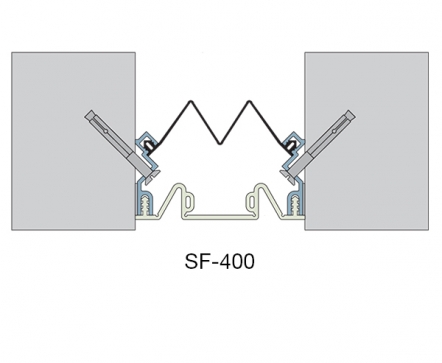

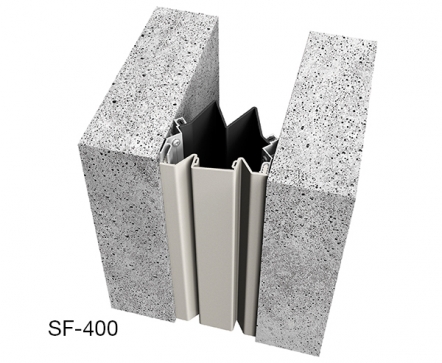

SF Series

Offering crucial weather protection, the SF series consists of a flush Santoprene gasket with a PVC secondary gasket positioned in continuous external aluminium side frames. Heat welded weather tight transitions are available.

  • Joint Width: up to 150mm
  • Horizontal: up to +75/-90mm
  • Vertical: up to ±15mm
  • Lateral: up to ±3mm

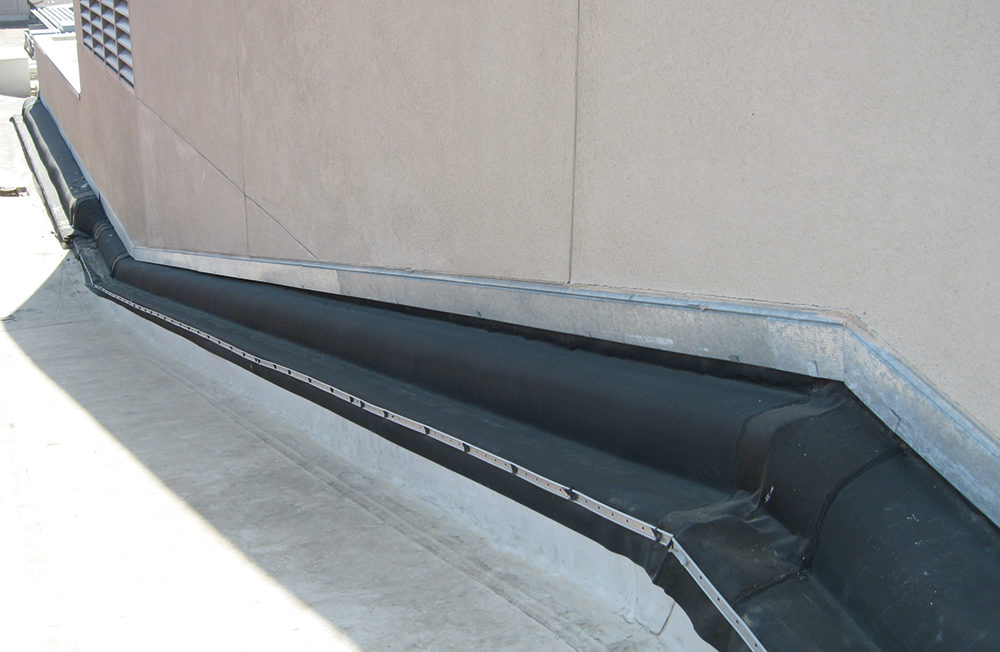

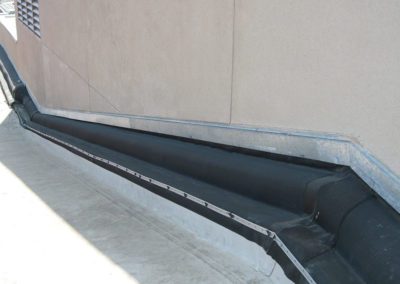

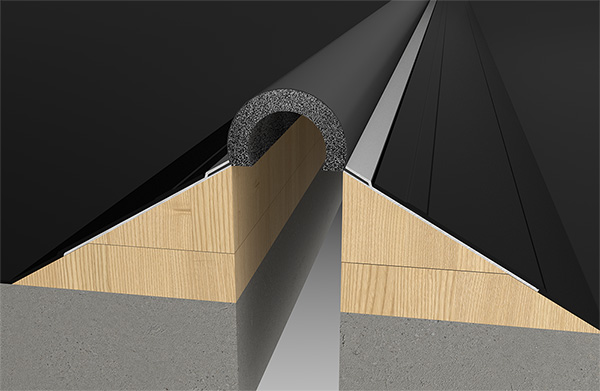

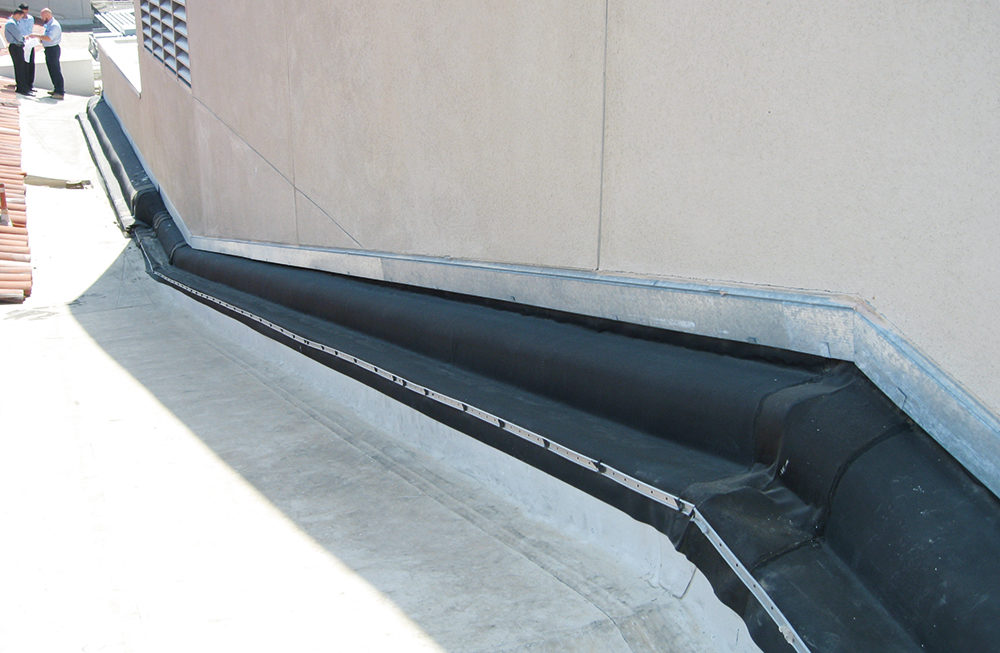

BRJ Series

Designed for use on flat or sloped roofs, the BRJ series has a water-tight seal and an EPDM bellow which expands / contracts to allow multi-directional movement. The joint cover utilises a malleable membrane applied to support foam, secured with a factory-attached metal flange.

  • Joint Width: up to 125mm
  • Horizontal: up to +60/-125mm
  • Vertical: up to ±3mm
  • Lateral &/or vertical movement can be accommodated but will reduce the amount of horizontal movement, which needs to be taken into account when specifying roof joint covers.

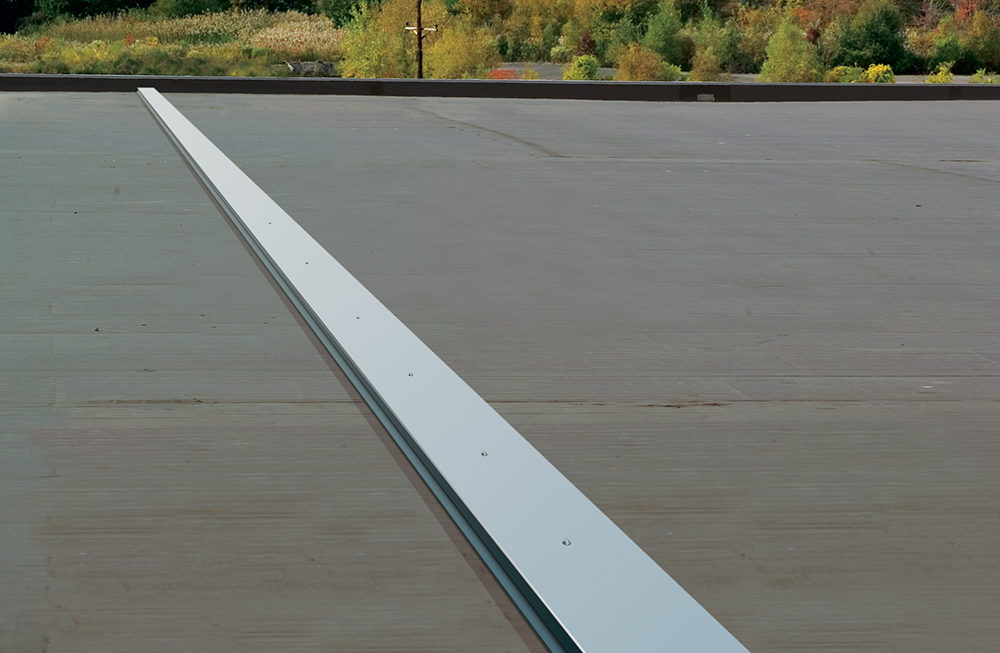

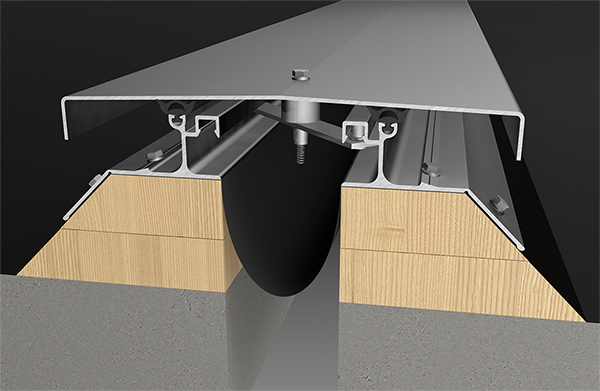

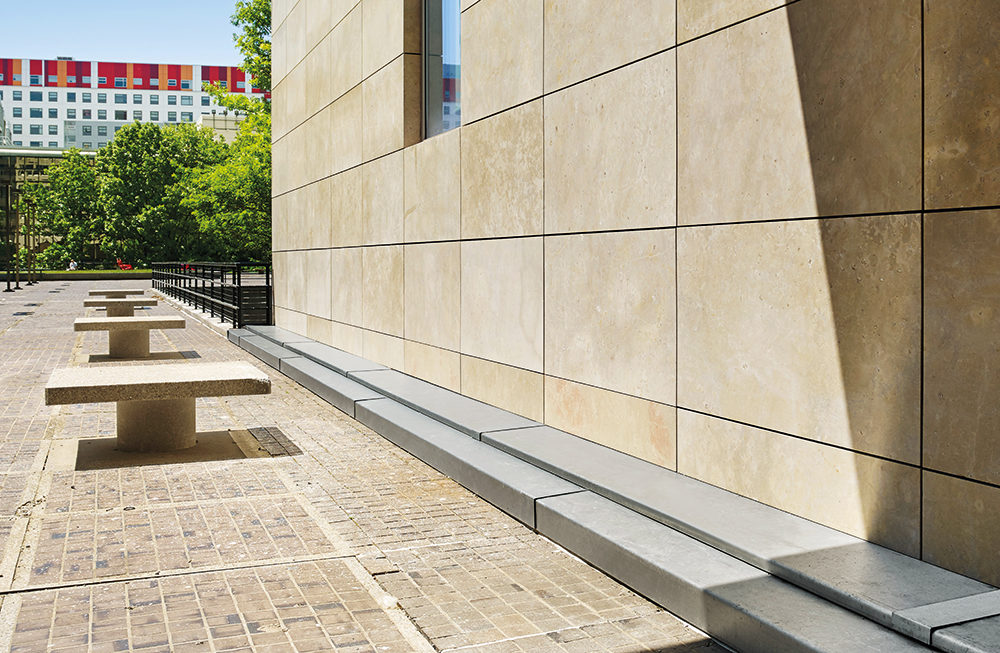

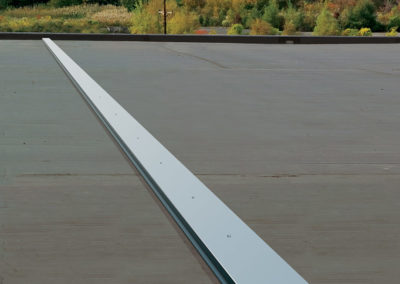

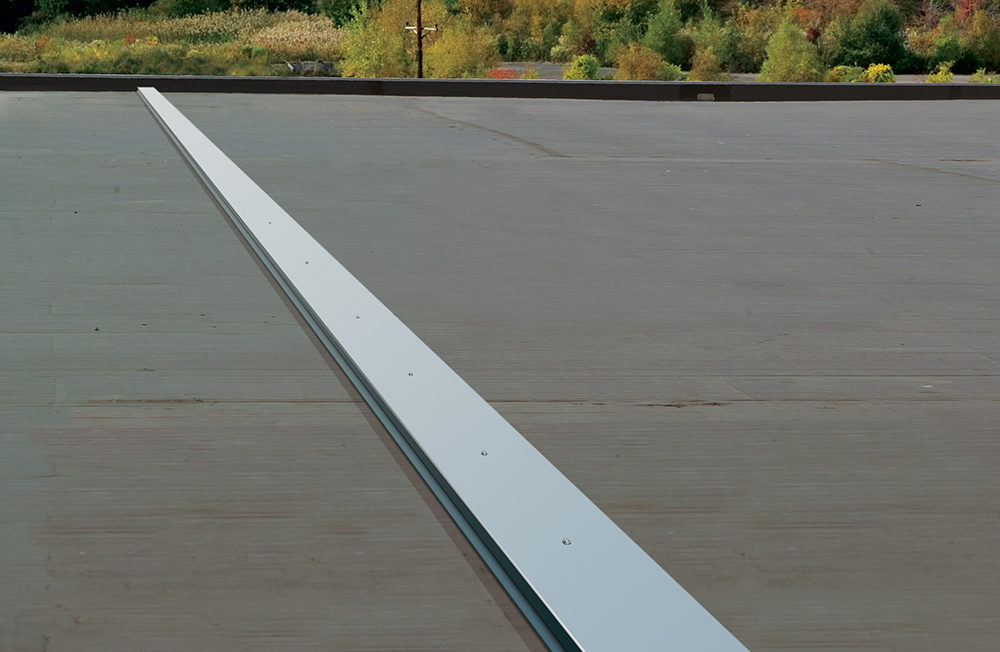

SRJ Series

The SRJ series includes rubber seals & moisture barrier to guarantee water tightness. Aluminium roof covers for applications where occasional access is expected and where durability is an issue.

  • Joint Width: up to 175mm
  • Horizontal: up to +140/-150mm
  • Lateral &/or vertical movement can be accommodated but will reduce the amount of horizontal movement, which needs to be taken into account when specifying roof joint covers.

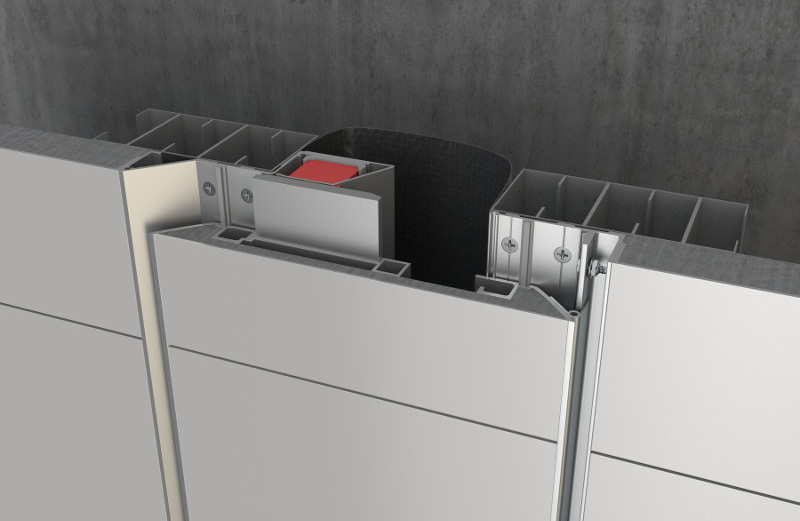

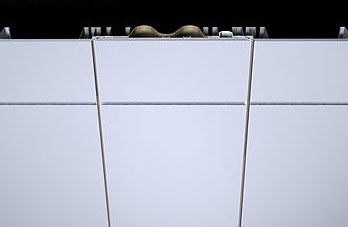

XLS Series

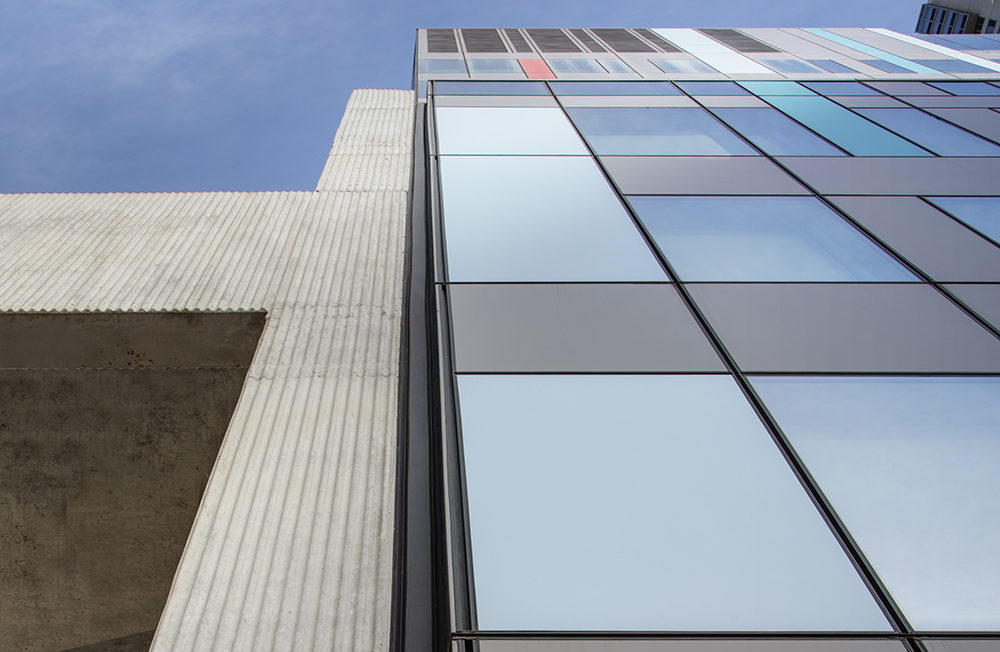

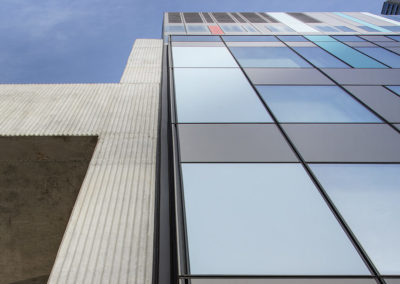

Designed for exterior curtain walls where concealment is desired. Concealment is achieved by incorporating exterior cladding material within the centre plate. In the event of an earthquake, a unique gravity closure concept allows the XLS cover system to reset automatically.

VF Series

An impregnated, compressible foam block available in 12 standard colours.
